LMG1020-Q1 can be used to drive pulses of nano seconds duration on to a capacitive load. LMG1020-Q1 can be driven with a equivalently short pulse on one input pin. However, this takes a sufficiently strong digital driver and careful consideration of the routing parasitics from digital output to input of LMG1020-Q1. Two inputs and included NAND gate in LMG1020-Q1 provide an alternate method to create a short pulse at the LMG1020-Q1 output. Starting with both IN+ and IN– at low, taking IN+ high will cause the output to go high. Now if IN– is taken high as well, output will be pulled low. So a digital signal and its delayed version can be applied to IN+ and IN– respectively to create a pulse at the output with width corresponding to the delay between the signals, as shown in Figure 7-5. The delay can be digitally controlled in the nanosecond range. This method alleviates the requirements for driving the input of LMG1020-Q1. If a separate delayed version of the digital signal is not available, a RC delay followed by a buffer can be used to derive the second signal. Optionally, if LMG1020-Q1 must be driven with a single short duration pulse, that pulse can itself be generated using another LMG1020-Q1 by the above method to meet drive requirements.

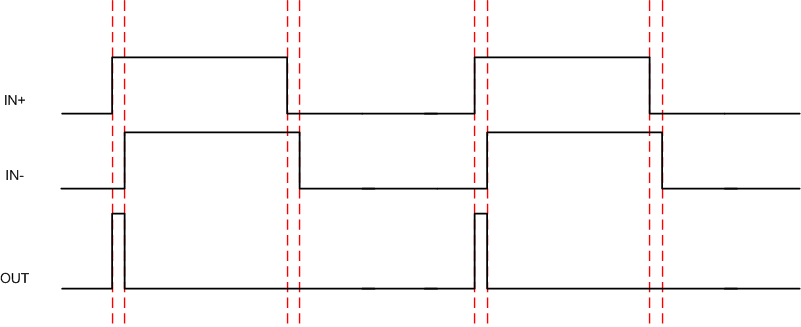

Figure 7-5 Timing Diagram To Create Short Pulses
