3 Test Device and Evaluation Board Information
The TRF0213-SEP is packaged in a 12-pin RPV, WQFN - Flip Chip RLF (WQFN-FCRLF, 12) package as shown in Figure 3-1. The TRF0213SEP-EVM evaluation board (EVM) was used to evaluate the single-events-effects (SEE) of the TRF0213-SEP. Top view of the evaluation board used for the radiation testing in shown in Figure 3-2. Schematic of the evaluation board used for radiation testing is shown in Figure 3-3. For more technical information about the TRF0213-SEP, see TRF0213-SEP's technical documents.

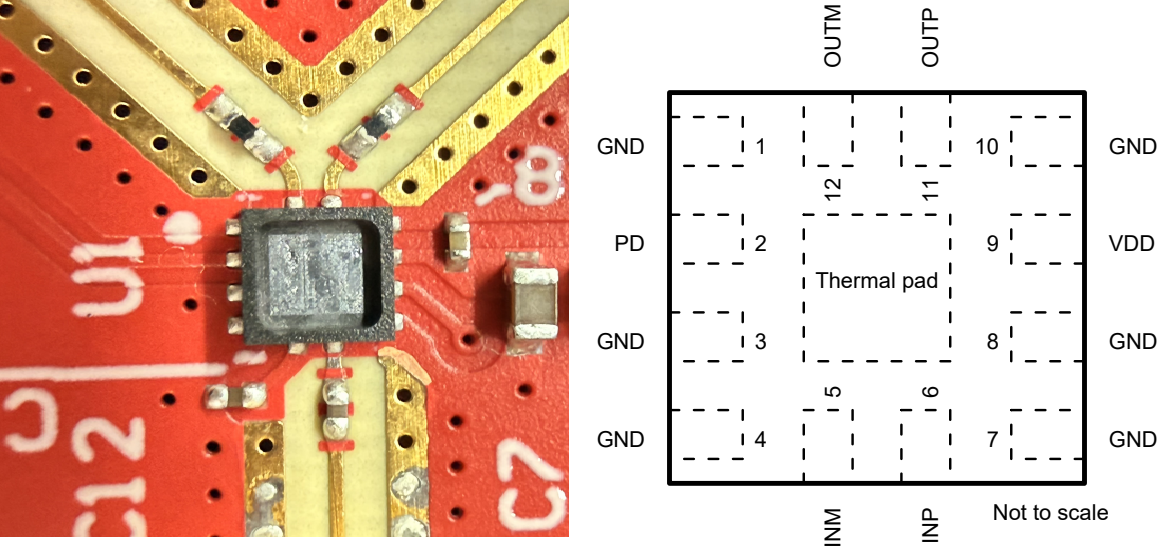

Figure 3-1 Decapped TRF0213-SEP (Left) and Device Pin Out (Right)
Figure 3-2 TRF0213SEP-EVM Board Top View

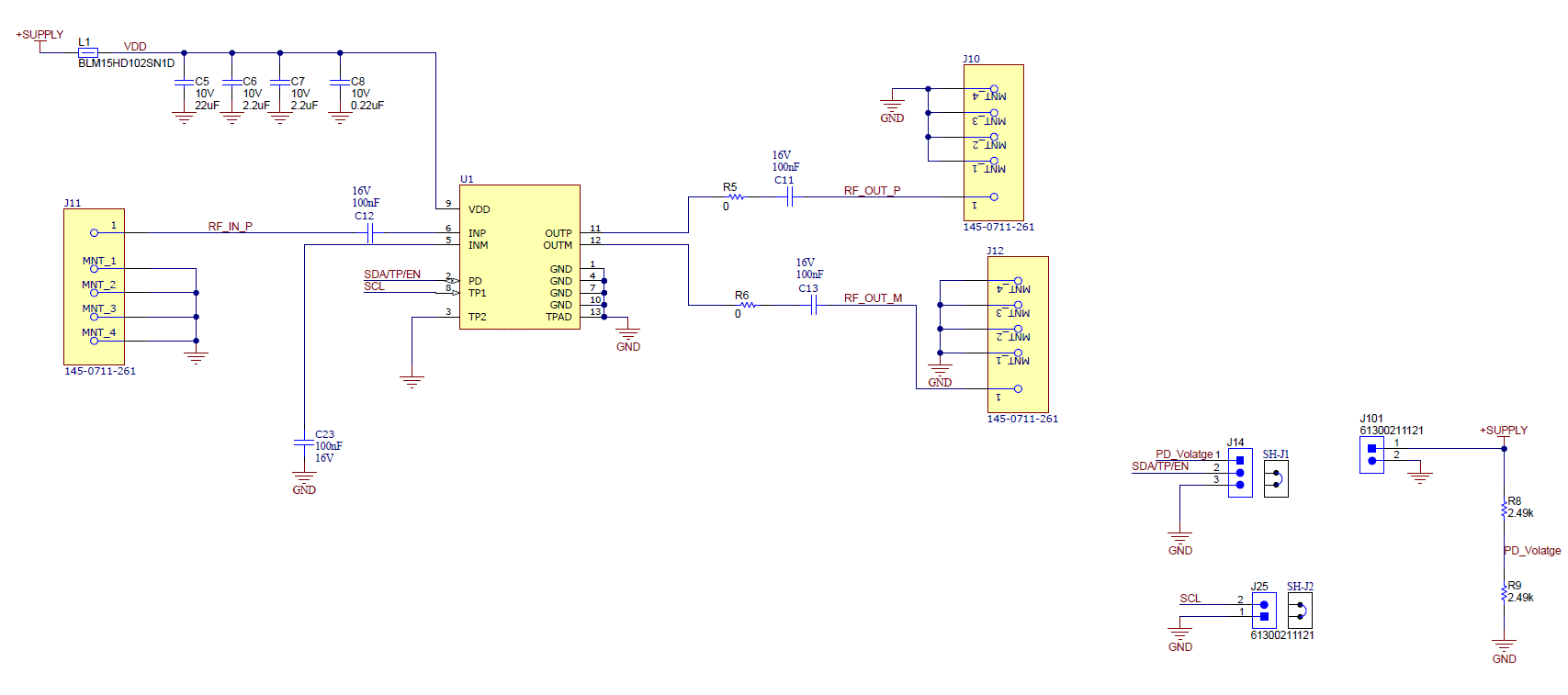

Figure 3-3 TRF0213SEP-EVM, Evaluation Module Board Schematic for SEE Testing
