3 說明
TPS92633 三通道 LED 驅動器采用獨特的熱管理設計，可減少器件溫升。TPS92633 線性驅動器每通道可輸出高達 150mA 的滿電流負載。外部分流電阻器可用來共享輸出電流并由驅動器驅動。TPS92633 還驅動 LED 單元和非板載亮度分級電阻器，從而簡化制造過程并降低整體系統成本。它具有全面的診斷功能，包括 LED 開路、LED 接地短路和單個 LED 短路檢測。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TPS92633 | HTSSOP (20) | 6.50mm × 4.40mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

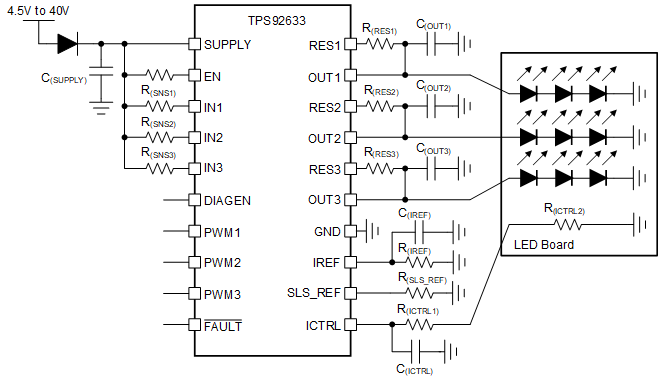

典型應用圖
器件功耗
