10.2.1 Typical Application
The typical application in this section includes a standalone charger without power path.

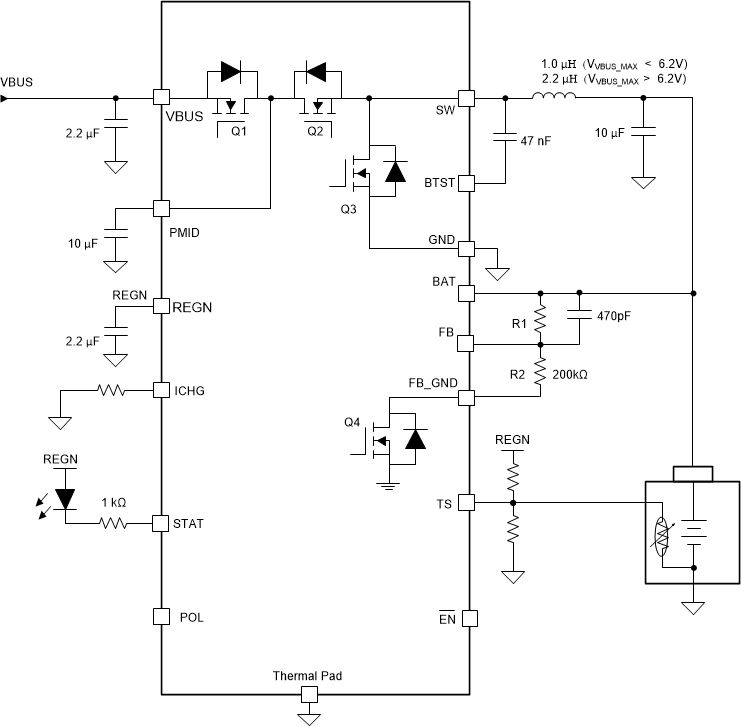

Figure 10-1 Typical
Application Diagram (1-μH inductor is recommended if maximum input voltage VVBUS_MAX < 6.2V; 2.2-μH inductor is recommended if maximum input voltage VVBUS_MAX > 6.2V )
