SLUSG28 August 2025 BQ25176K
PRODUCTION DATA
- 1
- 1 Features
- 2 Applications
- 3 Description
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Detailed Description
- 7 Application and Implementation
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DSG|8
散熱焊盤機械數據 (封裝 | 引腳)
- DSG|8
訂購信息
6.3.4.3 Output Overcurrent Protection (IOUT_OCP)
During normal operation, the OUT current should be regulated to the ISET programmed value. However, if a short circuit occurs on the ISET pin, the OUT current may rise to an unintended level. If the current at the OUT pin exceeds IOUT_OCP, the device turns off after a deglitch, tOUT_OCP_DGL. The safety timer resets the count, and the device remains latched off. An input supply or TS pin toggle is required to restart operation.

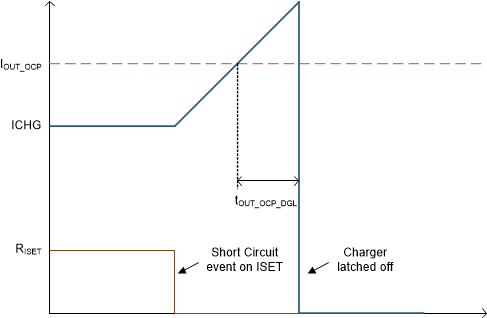

Figure 6-4 Overcurrent Protection
