SLVUCA9 August 2021

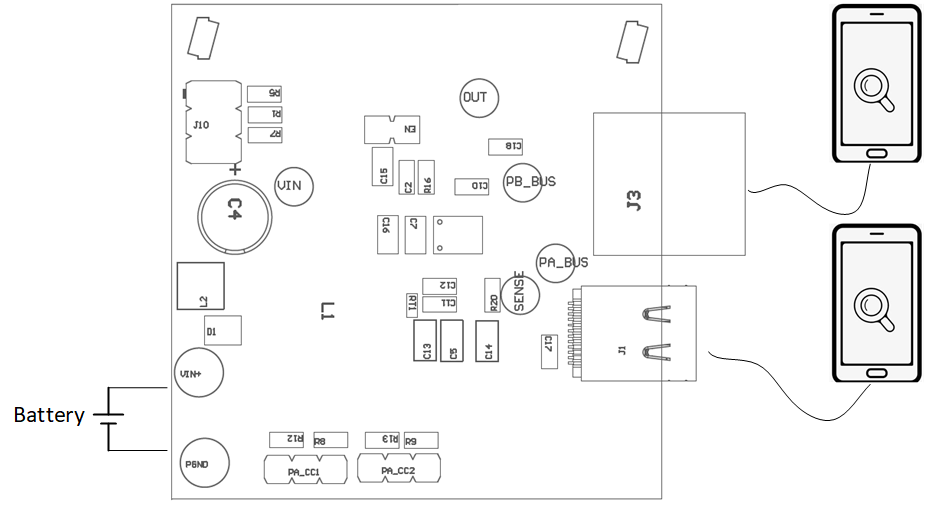

Figure 3-1 shows a typical test setup for charging the USB Type-C device. Connect VIN+ to the power supply. Connect the USB Type-C device to the J1 and J3 connector. Connect PA_CC1 to R12 5.1kohm side. Connect the jumper to the EN connector. Connect PA_EN and PB_EN to enable VBUS.
Figure 3-1 EVM Setup for Charging USB Type-C? Device
