2.3 CRC-8-One-Wire, 0xFF Initial Value
The polynomial can also be easily
changed in the script. For example, the original crc8CCITTZeroes()
example has the if statement for the CRC polynomial shown in Figure 2-8.
Figure 2-8 CRC Polynomial CodeThe 0x07 in the XOR is the polynomial and represents the bottom three terms of x8 + x2 + x + 1. The x8 term is the MSB that triggers the XOR.
If the algorithm is changed to
CRC-8-One-Wire, a new x8 + x5 + x4 + 1 polynomial
is represented by 0x31 and the initial value is 0xFF. Renaming the function, start
the crc8OneWireOnes() function with the same crc = 0xFF at
the beginning. Change the polynomial calculation with a new XOR as shown in Figure 2-9.
Figure 2-9 CRC-8-OneWire, Initial Value
0xFF, Calculation FunctionDetails of the CRC-8-One-Wire algorithm are listed in Table 2-6.
| CRC | Polynomial | Initial Value | Devices | CRC for 0xABC123 |
|---|---|---|---|---|
| CRC-8-One-Wire | x8 + x5 + x4 + 1 (0x31) | 0xFF | LMP9007x, LMP90080, LMP9009x, LMP90100, HDC302x, HDC302x-Q1 | 0xF4 |
Again, when making changes to the JavaScript, also change in the body text describing the CRC function. Then change the calculateCRC() function to call the new CRC calculation. The resulting CRC-8-One-Wire calculation appears in the browser window as shown in Figure 2-10.

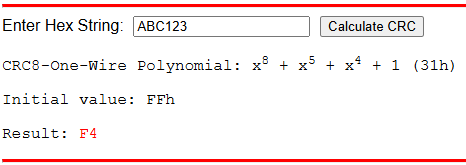

Figure 2-10 CRC Result for 0xABC123,
CRC-8-OneWire, Initial Value 0xFF
