7.9 Typical Curves

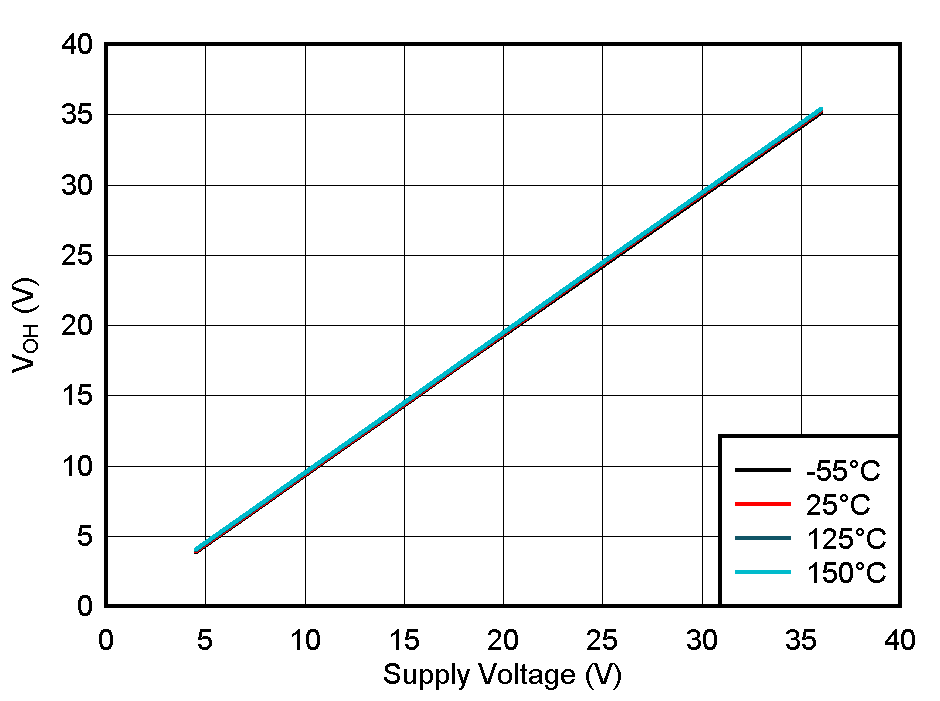

Figure 7-1 VOH vs VSUP vs Temperature

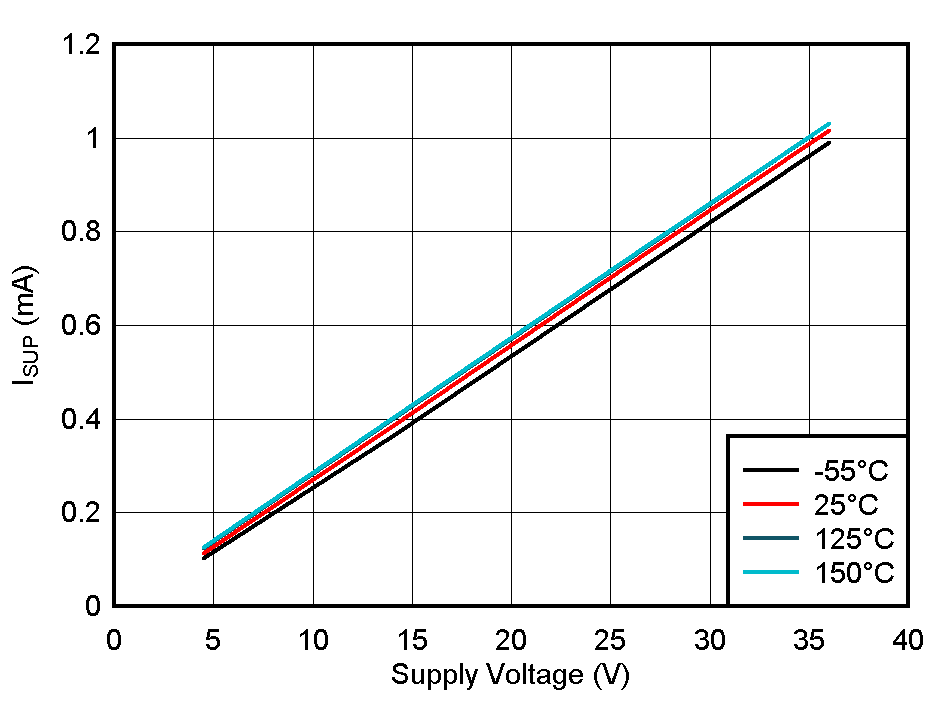

Figure 7-3 ISUP (DOM) vs VSUP vs Temperature

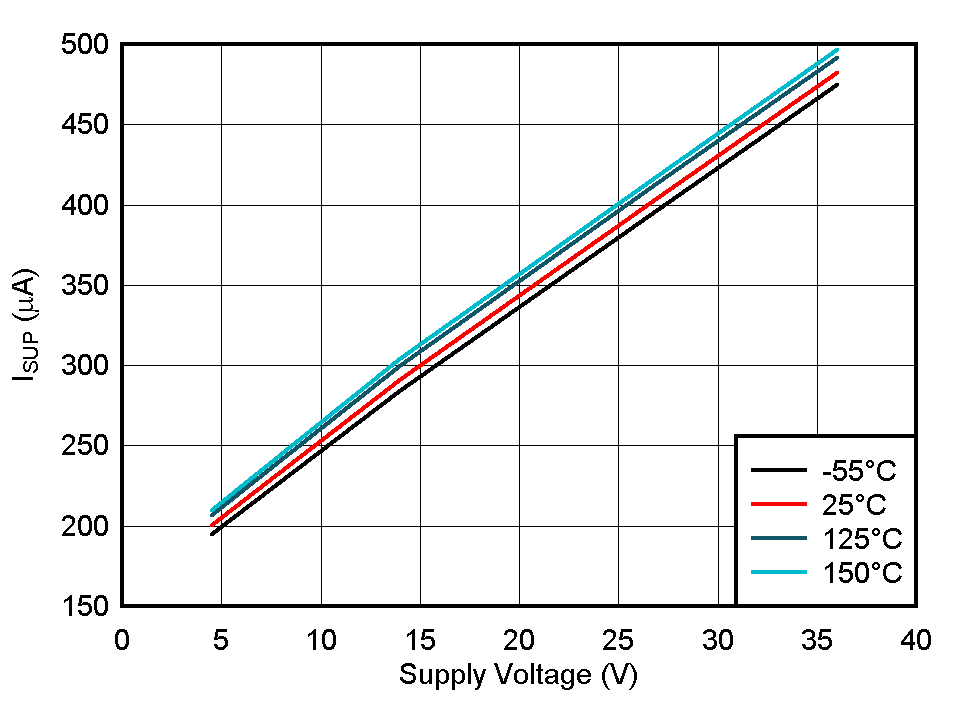

Figure 7-5 ISUP(STBY_DOM) vs VSUP vs Temperature

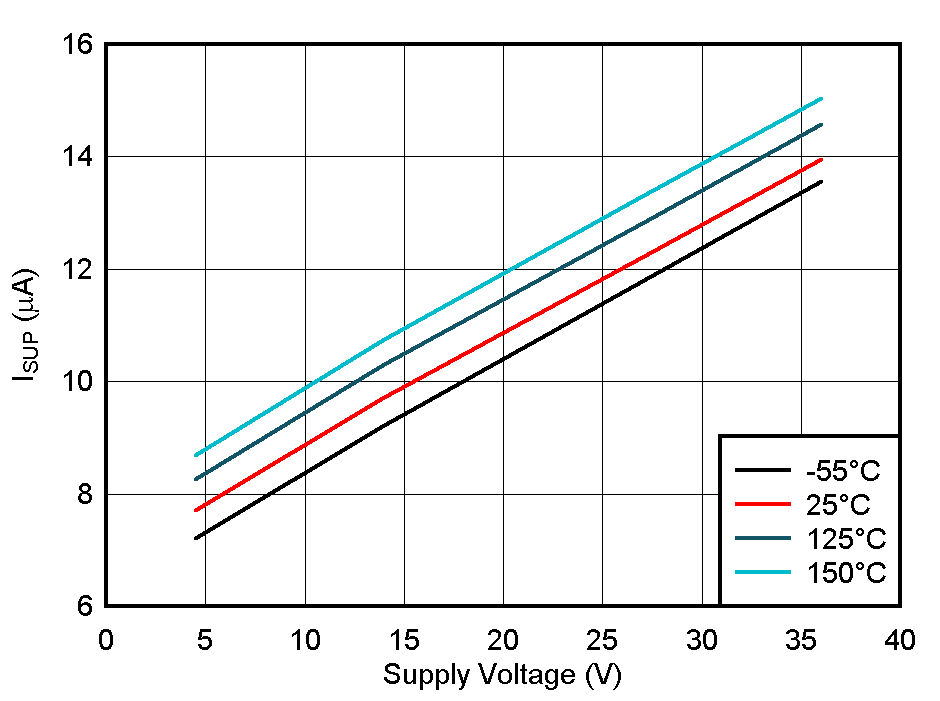

Figure 7-7 ISUP(SLP) vs VSUP vs Temperature

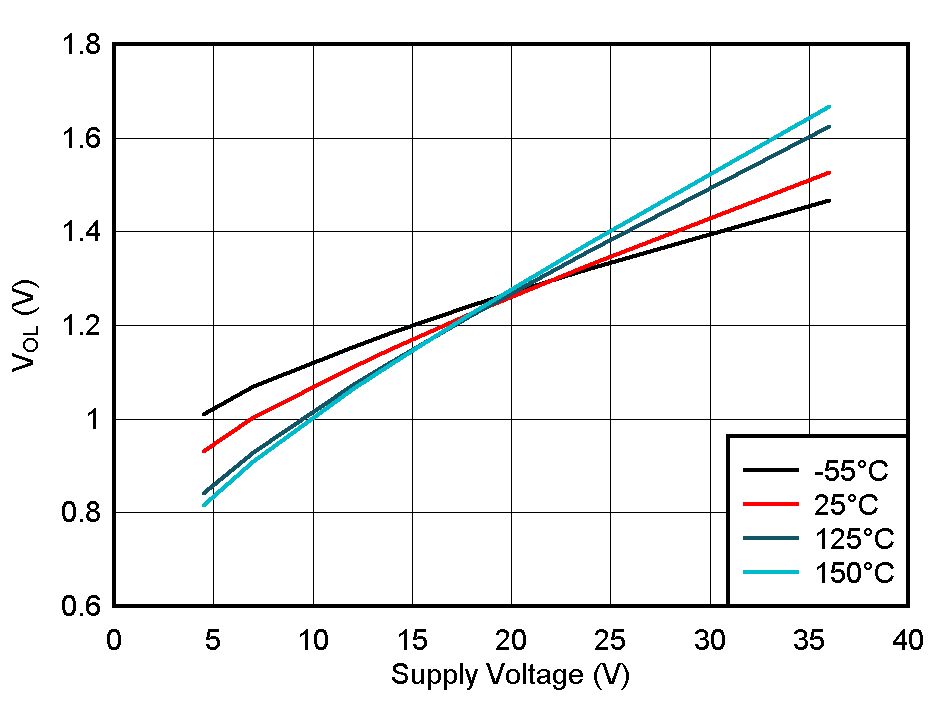

Figure 7-2 VOL vs VSUP vs Temperature

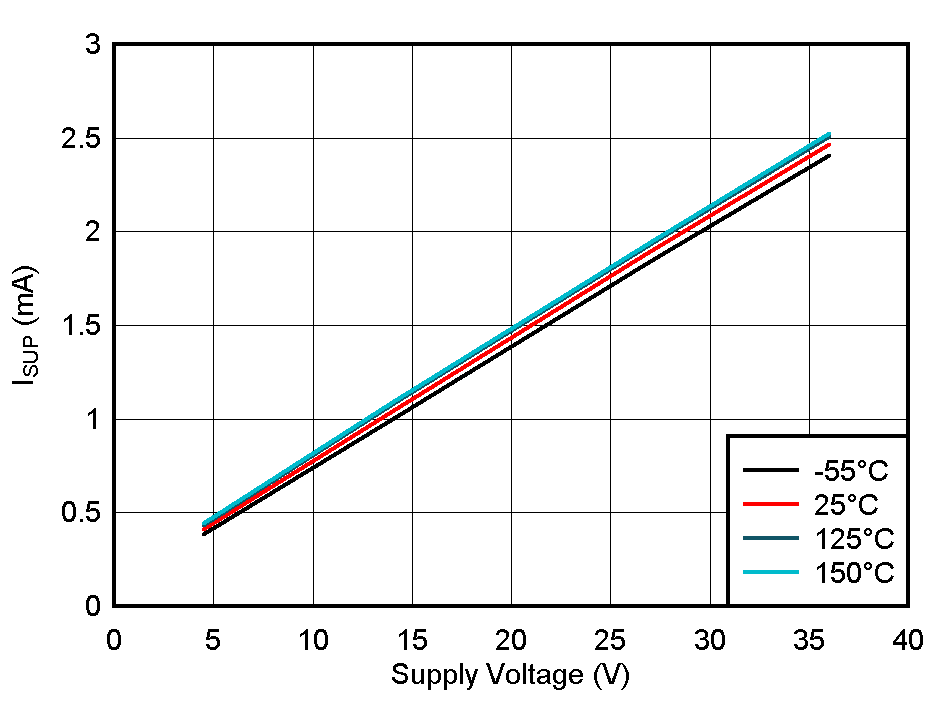

Figure 7-4 ISUP (REC) vs VSUP vs TemperatureFigure 7-6 ISUP(STBY_REC) vs VSUP vs Temperature
