ZHCSR55C June 1984 – October 2022 SN75176A
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 Recommended Operating Conditions
- 6.3 Thermal Information
- 6.4 Dissipation Rating Table
- 6.5 Electrical Characteristics – Driver
- 6.6 Electrical Characteristics – Receiver
- 6.7 Switching Characteristics – Driver
- 6.8 Switching Characteristics – Receiver
- 6.9 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Device and Documentation Support
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- D|8
- P|8
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
6.9 Typical Characteristics
Conditions listed in each chart

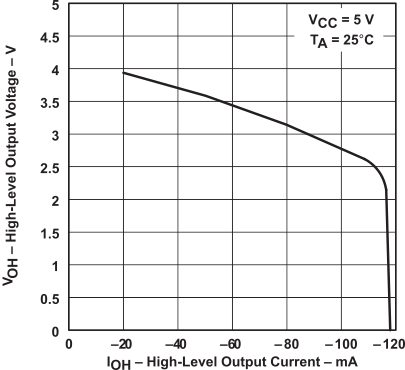

Figure 6-1 Driver, High-level Output Voltage vs High-Level Output Current
Figure 6-2 Driver, Low-Level Output Voltage vs Low-Level Output Current
Figure 6-3 Driver, Differential Output Voltage vs Output Current

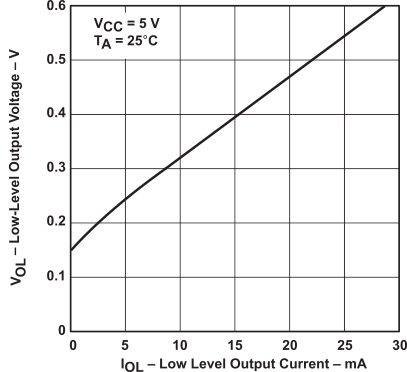

Figure 6-5 Receiver, Low-Level Output Voltage vs Low-Level Output Current

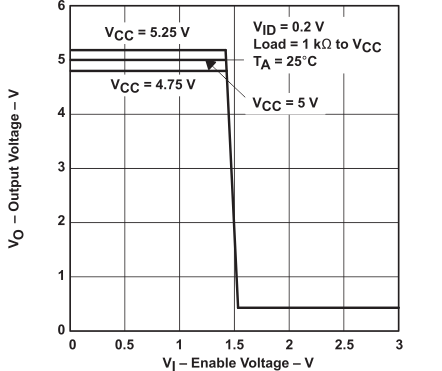

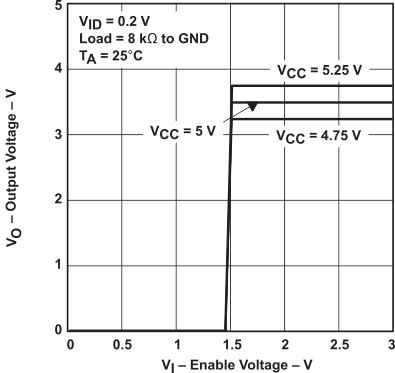

Figure 6-7 Output Voltage vs Enable Voltage

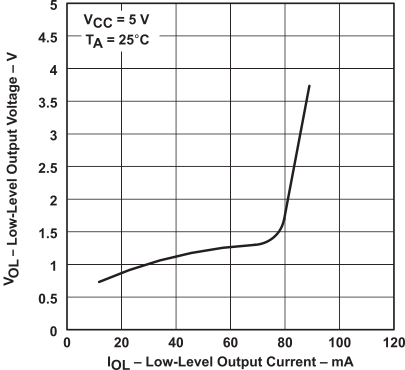

Figure 6-4 Receiver, Low-Level Output Voltage vs Low-Level Output Current

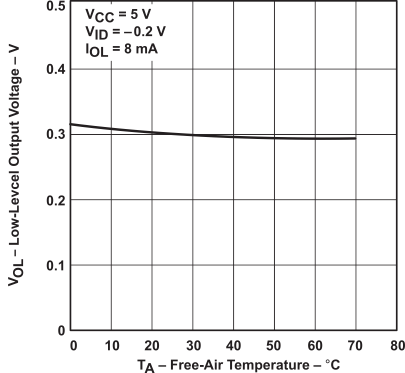

Figure 6-6 Low-Level Output Voltage vs Free-Air Temperature
